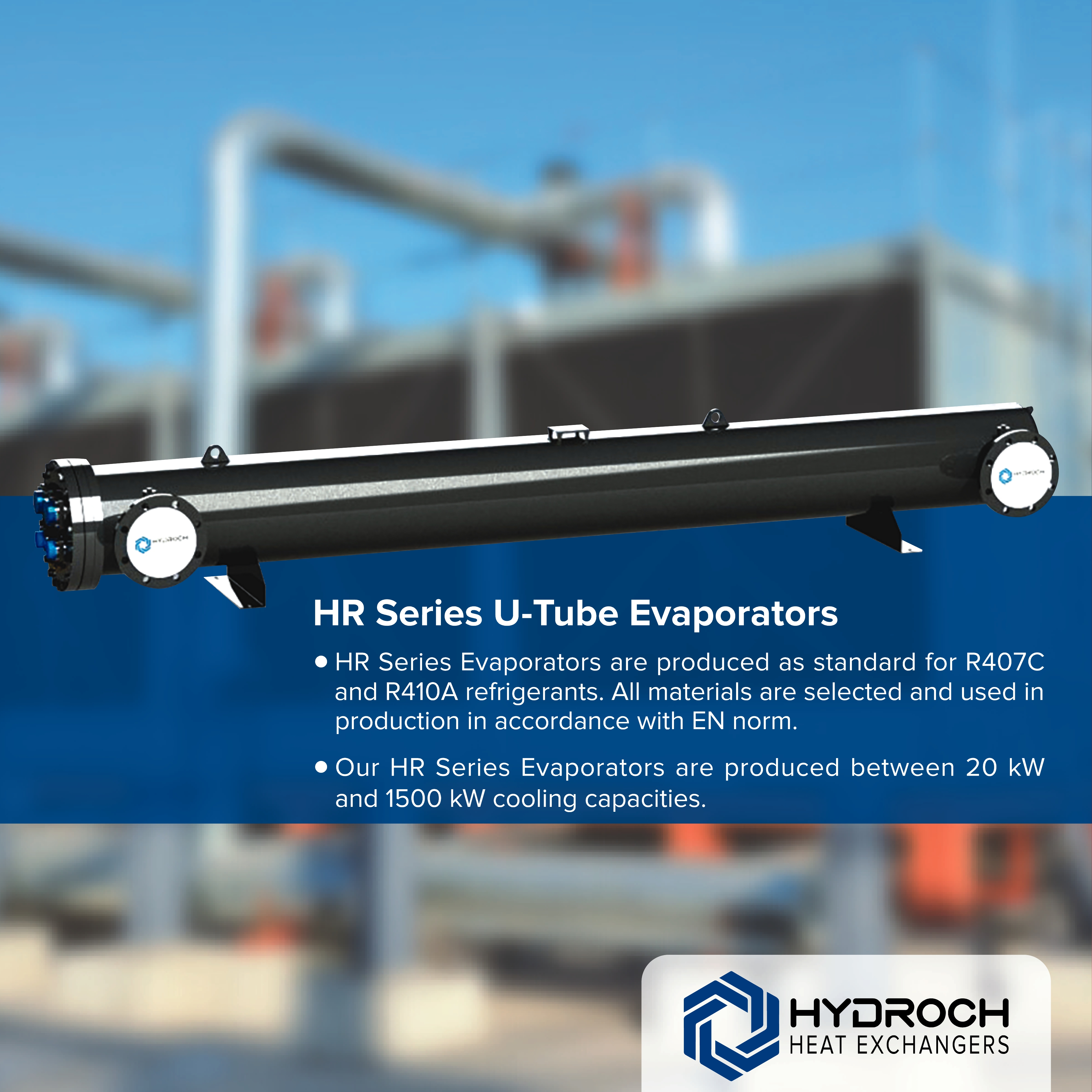

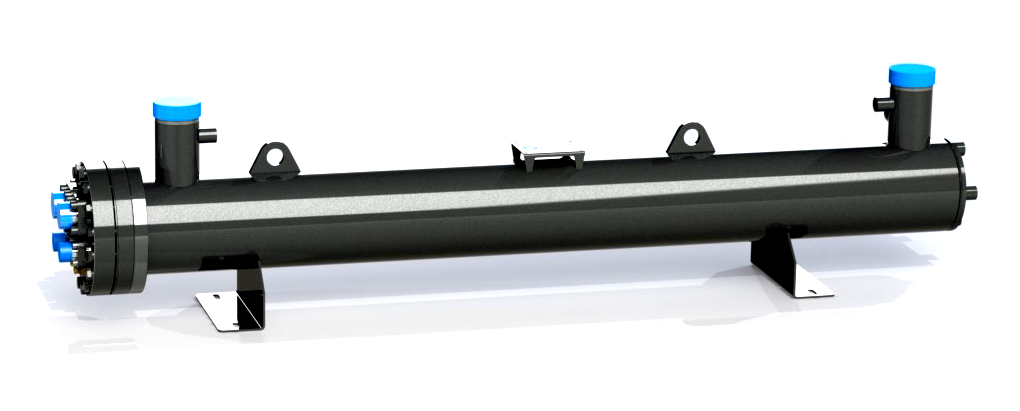

HR Series U-Tube Tube Evaporators; cold water in industrial cooling systems

in the range of 20 kW-1,500 kW cooling capacity to meet the needs of

high strength, vibration and corrosion resistant, sealed

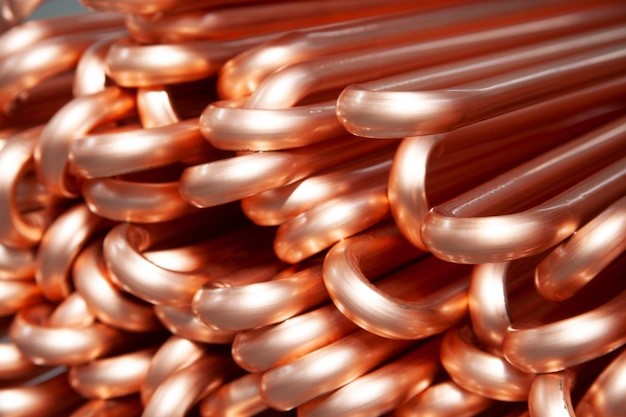

It is manufactured as grooved copper tube with heat transfer capability. Adopting customer satisfaction as its basic principle, HYDROCH can also provide services for customer-oriented special projects apart from its standard product range.

In order to get the most out of your evaporator, some application conditions stated below should be taken into consideration.

  • The evaporator should be used in horizontal position.
  • During water filling, the air inside the product must be evacuated.
  • Make sure that the pressure drop and application conditions are in accordance with the catalog values.
  • Do not stop the water flow before the refrigerant in the evaporator is discharged.
  • If you are not going to use the evaporator, fill the product completely with anti-freeze fluid so that there is no air inside, or empty it completely, making sure that it is dry.
  • Check the chemical properties of the water circulating in the evaporator regularly. Unsuitable water conditions will damage the evaporator.
  • Keep the evaporator away from vibrations and sources of vibration.
  • Avoid foreign particles in the water.
  • Use antifreeze solution below 0°C.
  • Avoid pump cavitation and air build-up in the system.
  • Do not operate refrigerated fluids near freezing temperatures.
  • Do not exceed the allowable water flow rates.
